Thursday 27 February 2014

Revit Stairs & Railings Index Page

Grenada - stairway to nowhere

In late 2011 I started beta testing the new Revit component based stair tools, and I learned a lot about the subtleties - both good things and shortcomings.  In early 2012, the new tools were released as part of Revit 2013.  In May 2012 I did a presentation on the new stair tools at the Revit Technology Conference in Wollongong, NSW, Australia.
In Revit v2014, very little changed - just a few minor tweaks that developed in response to beta testing feedback.
Since then I have published sections of my RTC presentation on this blog, along with a few tricks I have learned since then.
Here is a summary index to all my posts on stairs and railings.


Revit Stairs

Stair Sub-Categories

Stair Annotation



Revit Stair and Railing Enhancement Requests

Autodesk  now have a 'Revit Ideas' website that allows you to add your own enhancement requests and vote for those posted by others.  If any idea gets sufficient votes, Autodesk might just implement the feature, so I have compiled a list of stair/railing related ideas - why not head over there and vote for some of these requests, in the hope that they finally get fixed.  We are getting a little fed up with temporary solutions . . . .

Temporary Bamboo Staircase - Myanmar

Stairs with No Railings

We are still waiting for an overhaul for the railing tools.  In the meantime, we have to live without - so here are some stairs with no railings:

Cappadocia, Turkey

Bayamo, Cuba - No railings to impede the morning dash for the train

Malaga, Spain


    Ahungalla, Sri lanka
Elbe Mountains, Nr Dresden, Germany
Stepwell, India

Stair Path Arrows
In my series of blog posts, by far the most popular has been the one on Stair Arrows.  What that tells me is that my initial gut feelings about the change of method from inbuilt stair arrows to stair direction tags was correct - it is clunky and not intuitive!  The pity is that it is not such a bad idea to use tags - it just isn't well executed.  It could easily be improved by:

Pailon Del Diablo, Ecuador
Ladder Via Crucis, Spain

Wednesday 19 February 2014

Revit Multistorey Railings - Story 2

Go to Revit Stair & Railings Index Page

Apologies to Kevin Costner (hidden behind the railings)

[Edit: Revit 2018 has a new method for creating multistorey stairs & railings, so the issues described here may not be relevant once you upgrade to v2018;  However, if you have a stair with 3 flights that run over the top of each other it may be relevant; or if you are using v2017 or earlier, read on]

In the previous post, I described creating a multistorey stair using "Method 2" in Revit 2013 (or later) - ie. one that has runs or landings modelled above of each other.  Using that technique, you would certainly encounter this warning message when you finish the stair:
  • The reason for the warning is that the automatically created railings contain sketch lines that overlap each other.  Revit will break its own rules and allow this to happen in this situation only.
Revit will happily create these "railings with warnings" but will seldom let you change the railings.  If you need to modify the railing sketch lines there are some tricks that you can employ to change the right sketch line, and untangle the overlaps.  We'll start with the process for a simple railing, then go on to the tricky stuff later.

Three Flight Railing

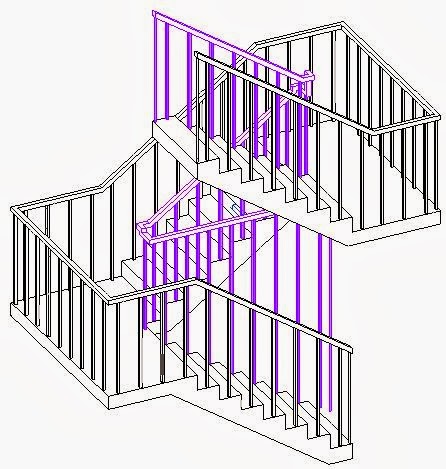

Let us look at the railings on the three flight example described in the previous post, where the top run sits above the lowest run
  • When you complete the stair, Revit will go ahead and create the railings, along with the warning - it may be a warning for the internal railing only, or else both railings, depending on the extent of run overlap

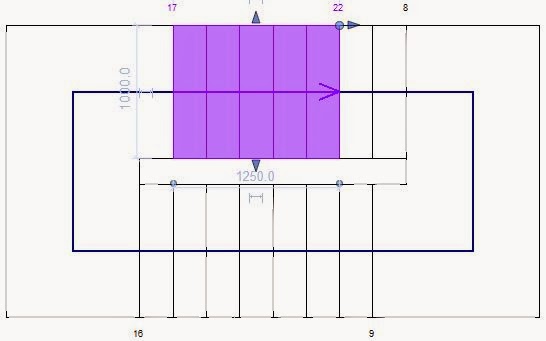

  • In this example the the base of the top run sits above the base of the lowest run;  the top run is shorter so the tops of the runs do not align - so there is only one warning
  • Let us suppose that you need to extend the lowest railing by one tread (as required by the building codes in Australia)

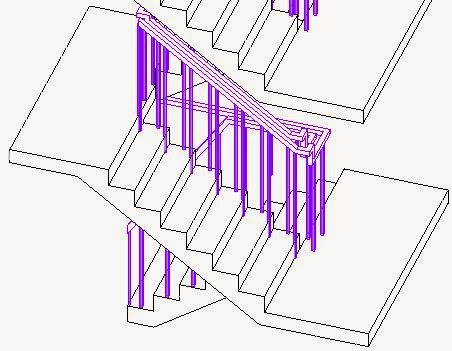

  •  First edit the inside railing.   Note the overlapping sketch lines for the first and third runs

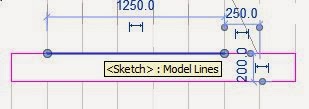

  • You need to select the line related to the lower run - in this case we are lucky because the runs are different lengths, so we can select the longer one relatively easily

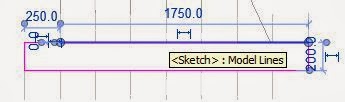

  • Extend the line to the left by one tread depth (250mm in this case) - it will now line up with the return on the landing.  When you try to finish the sketch it will give an error - this time it will not complete the railing because you have joined a sketch line belonging to the lowest run to a landing line at a different height (much too confusing for Revit to handle)
  • The only way around that is to undo;  try again but stop the line short of the landing return - the closest it will let you get is 26mm (just over an inch) before it automatically snaps to the corner.
  • Well, that isn't quite good enough because the railing is still an inch short.  I guess you could fudge it by adding a railing termination, but that is not going to work in every situation - so that is not acceptable either.  Looks like we'll have to resort to another workaround.

  • NB. If runs one and three were the same length exactly above each other, you probably wouldn't even get to this stage because both ends of the sketch line would align with the end point of other lines - you'd get the error message whatever you do

Warning: here follows another bizarre Revit workaround to get you out of trouble with multistorey railings (not for the faint-hearted).

Dances With Wolves (or Railings With Warnings)

We need to untangle the sketch lines so that you can distinguish each one and make sure that they remain linked only to the correct line in the chain when you modify them.  The solution comes from nature - a spiral.
The way to achieve the untangling is to make each overlapping run in the stair a bit smaller than the one below it, so that you end up with a spiralling railing sketch.  NB. it is better to make the runs smaller as you go up (for reasons explained later).

In our three run stair example it is very simple:
  • You may need to start with the railings as they were automatically created - either undo any changes or else delete the railings and replace them using the Place On Host command

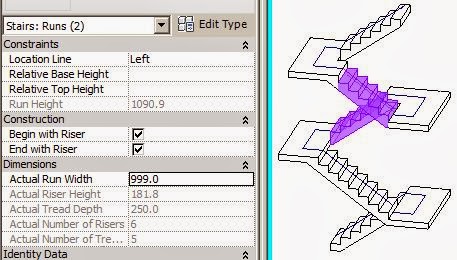

  • Select the top run of the stair;  change its width property to 1mm less than it was (or try 1/32nd inch for you imperials) - in stair edit mode or just tab-select the run without editing the stair

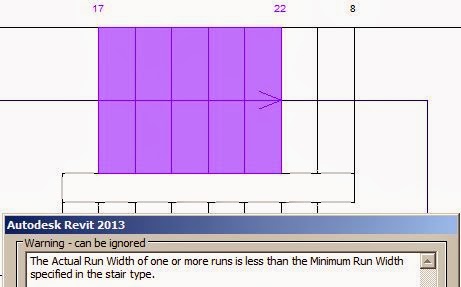

  • You may get a warning that the Actual run Width is less than the Minimum, but you can ignore this for the moment

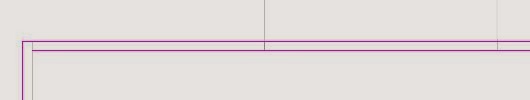

  •  Edit the inside railing - notice that you have two distinct lines only 1mm apart
  •  You can drag the end of the lower run all the way until it meets the landing line (no need to leave a 26mm gap this time)
  • When you try to finish the sketch it will probably give an error;  so you will need to drag the line back so it stops 1mm short of the landing line - hopefully acceptable;  if not, you can make the gap even smaller: anything less than 0.4mm will show dimensions rounded down so they appear correct.
  • This time it should work when you complete the sketch
  • Once the railing is fixed, you probably need to reset the run width back to its original dimension.
Rules of engagement
  • Note the Location Line of the stair run before you change its width - it needs to be set to the opposite side of the run from the railing that you are trying to change (or center if you want to change both railings
  • Normally, if a stair is modified, then its automatically generated railings will update to match - except:
  • Once you edit an automatically generated railing sketch in any way it breaks the connection between stair and railing - so that modifications to the stair layout will no longer be applied to railings automatically
  • Because of this behaviour, you need to apply the run width trick before editing the railing sketch, so that the railing sketch becomes a spiral pattern
  • If you have already edited the sketch, the trick would only work if you delete the railing and place a new automatic one
  • Once the railing is fixed, set the run width property back to its original dimension.   The stair will correct itself, and the railing will maintain its 1mm offsets - but only if you did edit the sketch
  • This is the reason for making upper runs smaller - when they are corrected, the railing sketch lines are not dropped off the edge of the stair runs (which would happen if you initially made upper stair runs larger).  In other words, your sketch spiral needs to remain on the stair runs not in the stair well.
  • You are much better off working with the sketch lines that Revit creates - modify those rather than creating new lines, so that you have a better chance of Revit understanding which lines relate to which runs or landings
  • It is ok to let railing sketch lines cross over each other.  The important thing is to keep the correct lines joined to each other at corners

Troubleshooting (Horizontal Railing Segments)
Most likely you will have runs/landings on exactly on top of each other, so it won't be so simple: either it will not complete the sketch or else you might get the "horizontal railing problem".
It quite often happens that one segment of the railing becomes inadvertantly hosted on something other than the run - it may be on one of the two adjoining landings or else the base level.   There are several things to watch out for to avoid this:
  • Make sure that the sketch line segment is on the run component in plan (or on its edge);  if it moves off the run it will lose its hosting; if the run moves the railing segment may not move with it.
  •  The railing sketch line has "Slope" properties when selected (on the Options Toolbar) - make sure it is set to By Host or Sloped
  • If the sketch line is set back from the edge of the run, then the corresponding landing railing line should also be set back from the landing edge (even with only one landing).  Sometimes offsetting the landing sketch line by 1mm will correct the horizontal run railing line problem

Multi-Level Multistorey Railings

Once you have mastered this technique for three run stairs, you can apply the same technique to stairs with four or more runs.  All you need to do is make each pair of runs smaller as you go up the stair.

Don't forget that the landing sketch lines also need to be offset.
  • You could do this by adjusting the landings themselves - but it gets fiddly as landings don't have depth properties so you need to drag the shape handles, which will not snap to increments.  Refer to modifying landings
  • Alternatvely you can just offset the landing sketch lines yourself - it is easy to distinguish which is which because their lengths are different due to changed run widths
I hope this technique helps someone to get their railing sketches to work correctly - it is not as bad as it sounds once you get the hang of it.  It won't help resolve the railing junctions, but that is another story!
Go to Revit Stair & Railings Index Page

Sunday 16 February 2014

Revit Multistorey Stairs - Method 2

[Edit: Revit 2018 has a new method for creating multistorey stairs, so the issues described here will not be relevant once you upgrade to v2018;  if you are using v2017 or earlier, read on]

Following on from the last couple of posts, here is an alternative method for creating multistorey stairs in Revit - typically where you need the runs and landings to be different to each other on each building level.  However, this method could also be used even when upper levels of the stair are the same as lower levels
Staircase up the Rock of Guatape, Columbia
Method 1 uses the "Multistory Top Level" setting to create virtual stairs above the components that you have modelled;  it also creates virtual railings on the upper levels of multistorey stairs - these have all kinds of limitations.  Method 2 does not use the Multistory setting, but relies on you modelling every component of the stair - since Revit 2103 lets you place run above run and landing above landing, you can do this.  It has its own set of limitations as we will see below, starting with a simple example:

Three flight One-Storey Stair

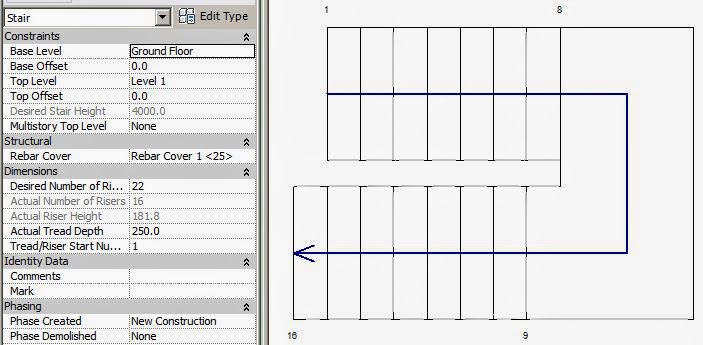

This example assumes an overall stair height greater than a typical floor to floor (4 metres in this case); or else you may need the stair to end up on the opposite directions at top and bottom.

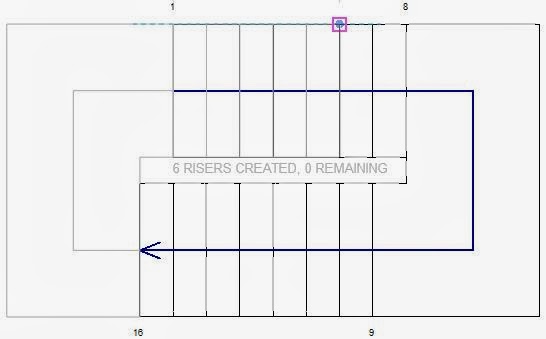

  • Start with placing two runs, and it will create the first landing.  Note that Revit numbers the first and last riser on each run
  • Then place another run starting on top of the lowest run (this was not possible prior to Revit v2013);  it starts getting confusing already - it tells you how many risers are remaining to finish but its hard to distinguish visually where you are at

  • The top run will display riser numbers when selected, but only after it is placed - this helps you distinguish which run you have selected
  • It is much easier to see what is happening in section, elevation or 3D, although riser numbers are not displayed; you do get the shape handles in section/elevation

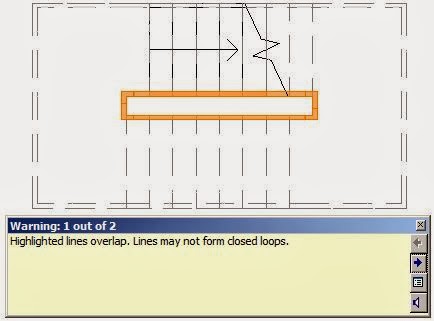

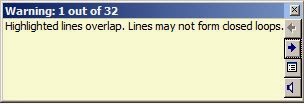

  • When you finish the stair, you will get the inevitable warning message as Revit creates the railings (the stair itself is fine)
  • Revit will go ahead and create the railings, with only the usual glitches as it tries vainly to go around the inside corners
  • The reason for the warning is that the automatically created railings contain sketch lines that overlap each other.  Revit would not normally allow this to happen - certainly if you tried to sketch it that way yourself it would not let you.
This warning message is a bugbear of the new Revit stair by component tools.  The software developers apparently knew that this would happen because Revit allows the stair and its railings to break the normal rules.  As users, we have assumed that the new stair tool was part one of an update process and that new railing tools would follow, and resolve the problem - but we have not seen any new railing tools yet.  We live in hope!

So, Revit will create these "railings with warnings" but woe betide if you need to modify the railing sketch lines - it is almost impossible to untangle the overlapping lines.

If you do need to modify the railing, refer to the next post  Multistorey Railings - Story 2.

Multi-Level Multistorey Stairs

Once you start going past three flights and over multiple building storeys it gets more interesting.  There are two approaches to defining the overall stair height and riser height - the options are somewhat akin in principle to the Array command in Revit:
I will refer to them as "Define Second Storey" and "Define Last Storey" techniques, so the comparison with the Array command makes sense.  In the examples shown here, I will stick to two runs per storey, to keep it simpler.  What varies between the two techniques is the setting for 'Top Level', and as a result the overall desired stair height and desired number of risers.

If all your building storeys are the same height, it should be fairly straightforward, because riser heights would be identical for the entire stair.  However, if some storey heights vary, you may run into trouble, as seen below.  Both techniques will not allow you to vary riser heights for different storeys, so that aligning landings to storey levels may be a problem.

Define Second Storey Technique

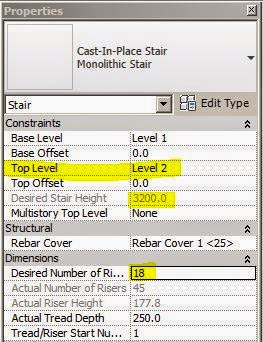

For the Top Level of the stair, you can define the upper level of the first building storey that the stair spans, even though you intend for the stair to keep going above that level.  Revit will calculate the riser height and number of risers for that building storey only.
  • After placing the first couple of stair runs, you will reach the desired number of risers;  Revit lets you keep adding more runs - when you start placing more overlapping runs, the automatic riser numbers in plan will display the Desired Number of Risers + the additional number, which can be a little confusing
  •  Just for the record, the size of these automatic riser numbers is controlled by the view scale - if you want to be able to read them, just bump up the scale temporarily
  • The riser height will be constant for every run - this means that on the runs above the defined Top Level, you may not be able to align the stair exactly with levels where upper storey heights vary
  • Once the stair is complete, you will be able to label the step numbers using the "Stair Tread Number" annotation tool.  The numbers will display the correct riser number within the whole stair rather than the "Desired +" that you get with the automatic riser numbers.  This is a different result to method 1 (virtual upper level runs created using the Multistory Top Level setting) where the upper levels cannot be numbered at all

Define Last Storey Technique

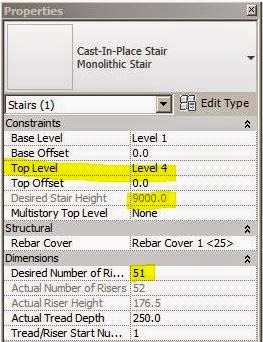

For the Top Level of the stair, you could define the highest level of the stair.  Revit will calculate the riser height and number of risers for the whole stair
  • The riser height will again be constant for every run - this means that intermediate landings may not be able to align exactly with middle levels where any storey heights vary
  •  The automatic riser numbers in plan will be the actual number within the whole stair

Once you complete the stair, you will get the inevitable warning message
You can ignore this message if you never intend to edit the railing.  If you do want to edit it then refer to the next post about Multistorey Railings - Story 2
