Levels By Scope Box Hidden in Section Elevation

Lost your Levels in Revit?

Here is some weird Revit behaviour that you may need to know about Scope Boxes and Level/Grid visibility - to help you find invisible Levels:

Example: Multistorey Building with podium and  two towers

A common situation in Revit occurs when you have two sets of levels, that do not align - perhaps you have a building with two towers that have different floor to floor heights.

NB. In this example:
  • All levels are displayed with 3D extents (so it ignores the effects of 2D view cropping of levels).
  • Same behaviour applies to grids as levels, but only levels are shown here.

Level Visibility

  • From one direction the levels look good in elevation or section
South Elevation - Levels
  •  Looking from the side, the levels might overlap each other (depending on the view extents) - a mess where you can see both sets of tower levels mixed together.
Side Elevation - all levels visible

  • To make the side elevations and cross-sections look better, you need to adjust the view extents -

  • Typically you should set 'Far Clipping' to 'Clip without line' and set the offset so that it extends into the levels that you want to see, but not the distant ones
South Elevation - Far Clipping through levels
Section - Far Clipping through levels

  •  If the clipping is too short you won't see the levels
South Elevation - Far Clipping too short
Section - Far Clipping too short
  • If the far clipping is too long, and extends through both sets of levels, they will both be displayed (usually - see Weird Stuff below)
  • If Far Clipping is set to 'No Clip', you will see all the levels
No Clip
Far Clipping Options
South Elevation - No Far Clipping
Section - No Far Clipping

  • Interestingly, when you set a section or elevation to 'No Far Clip', you can actually see levels behind the view.  In the example below, the section line is between the towers.
South Elevation - Section between towers; No Far Clipping
Section between towers - No Far Clipping

Where Are My Levels?

If some (or all) of your Revit building levels are not showing up in a section or elevation view, you can use the above 'No Clip' behaviour to your advantage:
  • Check all the usual visibility settings, such as Category On; no filters; Not hidden in view etc.

  • Set the view extents to 'No Clip'
  • Set the view to 'No Cropping', so that you can see the 3D extents of all levels

If the levels are still not visible, it may be due this next quirk of Revit behaviour:

Weird Scope Box Properties

  • If any of the levels (or grids) have a scope box applied to them, not only will the scope box crop their extents, it will also prevent levels from showing in a section or elevation unless the cutting plane of the section/elevation actually intersects the level.
  • This means that 'No Far Clipping' has no effect on visibility



To resolve this:
  • you have to set the Scope Box properties back to 'None'

  • The level extents will not change, but they will no longer be controlled or locked by a scope box.
  • You have to make a decision about which is the worst of two evils!

You may also want to check the 3D extents of levels in a 3D view by turning the Level category on in Visibility Graphics.  Refer to 3D Levels

Another Scope Box Quirk

 Scope Box visibility behaves differently to Levels and Grids:
  • A scope box will always be visible in a section or elevation view only when the view cutting plane actually intersects the scope box.
  • You cannot make distant scope boxes visible by changing the section/elevation Far Clipping property to 'No Clip' - unlike Levels, it makes no difference.

More info about Scope Boxes:

Monday 6 January 2020

Preventing Levels and Internal Origins appearing in new 3D Views

How many times have you seen a Revit 3D view obliterated by Scope Boxes?
Well, now we have Levels visible in 3D (2019) and Internal Origins in 3D (2020.2), which can also be visible by default.


There is a simple solution to prevent this happening:

Default 3D View

Typically, when you create a new 3D view, it has almost all categories visible, including Scope Boxes, Levels, Room Separation lines, Base Points and now Internal Origins. These can be very annoying in 3D views - particularly the Origins in perspectives.

Here is a procedure to prevent this:

  • Go to a default 3D view
  • In Visibility Graphics, turn off the visibility for Room Separation lines in model categories


  •  Turn off all three Origin sub-categories (Internal Origins visible in 3D from v2020.2)

  • Turn off the Scope Boxes and Levels category (Levels are visible in 3D from v2019);
  • [Optional] turn off other datum and view control categories like grids, reference lines, sections, elevations (in case they become visible in 3D views in the future)

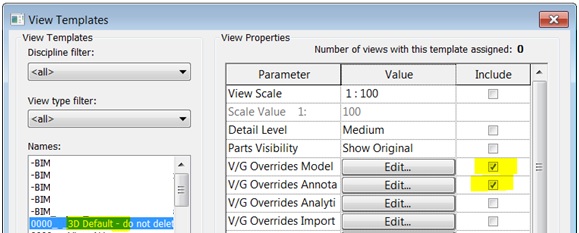

  • Create a new View Template from the 3D view – called ‘3D Default – do not delete’- [NB. “do not delete” part of the name is to prevent accidental changes later]
  • Untick all the ‘Include’ boxes except for V/G Overrides Model & Annotation

  • Click OK to close and save the View Template
  • Go to the Type properties of the 3D view

  • Set the ‘View Template applied to new views’ property as your new 3D Default view template
  • Untick the ‘New views are dependent on template’ property – this means it just turns off those categories, without permanently applying a view template;


  • You will subsequently be able to change other category visibilities;
  • All new 3D views and perspective views will have those categories turned off by default (scope boxes, Levels, Origins,  Room Separation lines etc).
This should obviously be set up in your project template as well as all current projects.
