Revit Stair Wall Joins in Section

Following on from an earlier post about joining stairs and floors, I just wanted to clarify what happens when you try to join Stairs and Walls in section . . . .

We saw previously that Revit does have some limited capability to join stairs and floors at the base of a stair - but it has many limitations.

Joining a Wall and a Floor

All good Revit users would know that if a floor and a wall are of the same material, and they have coincident or overlapping edges, they can be "joined" in the model.  This is not just a graphic tool that is done per view - it affects the model in potentially all views, including material quantity schedules.  If an overlapping wall and floor are joined, the volume of material that was previously counted twice is corrected after the join so it is counted once.

Join Geometry

Select floor and wall to join

Floor and wall are joined

Providing that the elements are of the same material, the line between the floor and wall disappears.  In this example, the 'Level' line is revealed, as it happens to align with the top of the floor.

Joining a Wall and a Stair Landing



Try the same thing with a wall and a stair landing . . .

What happens?  Absolutely nothing.  After selecting the wall, Revit will not even highlight the stair landing (or vice versa if you select the landing first).

Well, that is just plain ridiculous!  You might argue that the wall and landing would be cast separately on site, so there should always be a joint line between them - but the graphic convention is to not show a line, or at least show a thinner line between them in section.



What to Do?

There is no good workaround to this problem - each method is clunky and not robust.

Linework Tool

Linework Tool

If you try the linework took, you immediately discover that it will not do the job for you, as it affects the whole wall.

That isn't very helpful, as you only want a small segment of the wall edge line to be invisible (or thin line).

Another strange Revit quirk with the linework tool is that when you select a line in elevation (or projection in plan) it gives you blue dots at each end , which can be dragged so that only part of the line has its style overridden.  That is a very useful capability - but infuriatingly, it does not work on cut lines.

Yet another quirk is that the underside of a run is treated as one line when cut (section), but in elevation, each step is a separate line segment.  Why, or why?

Filled Region

Filled Region

A common method of hiding a multitude-of-sins in Revit is to use Filled Regions.  These have pros and cons:

• They are quick and easy to understand for most users

• Their edge lines can be of different styles, including "invisible" as part of the sketch - so they hide model lines underneath

• They will merge with underlying element hatching , providing the material hatch style matches the filled region hatching

• They are view-based, so any patching up on one view will not show on other views

• Line edges/junctions can be messy when viewd close-up

• If the model is changed, the filled region will not change with it (unless you constrain the sketch lines, which is not generally advisable - as your model very quickly becomes over-constrained and unworkable)


Cut Profile

Cut Profile (View Menu)

You could try the 'Cut Profile' command - this allows you to modify how an element looks in a particular view.  Once initiated, it takes you into sketch mode - so you can draw a shape to add to an element (or cut from it).

The end result is not very promising in this situation

• The added shape does not obscure the wall line in the way that a filled region does
• The sketch lines cannot have a line style (unlike Filled Regions)


The worst thing about this idea is that the Linework tool does not work at all on cut-profile shapes - thus making this tool almost useless!

Conclusion

Sadly there is no clever workaround.  The conclusion is that it is not worth fighting Revit on this one - just accept the joint line between wall and landing.  In many cases it is not an issue, but when the stair and wall are both cast in place concrete, it is very annoying.

Revit Stair-Floor Joins in Section

The inability of Stairs to properly join to floors (or other elements) in Revit has long been on the wishlist of things for Autodesk to fix.  Back in v2014, we were very excited when Autodesk included this in the list of enhancements to be released.  As per many recent Revit enhancements, this was only a partial improvement.

You can be the judge as to whether it was "fixed" but most Revit users are not even aware that anything changed in version 2014, such was the hit-and-miss nature of the improvement . . . .

Join Geometry - Stairs in Section

At the base of a stair, if a concrete monolithic stair sits on a concrete floor, you would expect to be able to join them, providing they are of the same material.

Well, you can  . . . .  sort of.  It only works if the stair base is sitting exactly on the slab .

Join Geometry

The circumstances in which it works are limited, as you can see below:

• If the base of the stair overlaps the floor at all, it won't work - the join is ignored.

• OK, you wouldn't normally lower your stair like this as the base riser height would be wrong

•  But you might extend the run lower, by selecting the "Run" (not the whole stair) and changing its 'Extend Below Riser' property

•  The join still does not work

• So why would you want the stair to overlap the floor?

• Well, maybe you have a screed on the floor slab, and you want the concrete stair to rest on the slab, not on the screed.

• With the stair sitting on top of the screed, the join does work, although it shows a thin line due to different materials - but the structural geometry is not what you want


• As soon as you lower the base of the run, the stair cuts through the screed as it should, but the join stops working - there is a heavy outline between the stair and the concrete slab (same material).


• Many experienced Revit users might want to separate the structural slab from the floor finish (screed) - particularly when producing 'concrete setout' drawings or when collaborating between architects and structural engineers.

• The concrete slab could be set down by 50mm (screed thickness);

• Extend the run 50mm below the finished floor level;

• Join the stair and structural slab

• Add a separate floor on top of the slab - just containing the finish (screed)

•  Not surprisingly the finished floor will run through the stair


• The stair will obviously not join properly with the floor finish as they overlap each other


Workaround

• Just for due diligence, I thought I should test the process by trying to join the stair and the floor finish


•  This time it actually gave a warning, saying that they cannot join

• Much to my amazement Revit did actually join the stair to the floor finish, exactly how it ought to - despite the warning !

• Just to make sure, I had a look in 3D - and it really had cut out the floor finish - albeit with a permanently attached warning in the list.


• I think I could live with that warning, along with the hundreds and thousands of other spurious ones that we are unable to remove or flag as not significant.

Edge of Slab Join

In some situations, the bottom of the stair could meet the edge of the floor slab

• Obviously the stair run needs to extend below until it meets the slab edge

• Join Geometry ought to merge the two elements


• Apparently it does not.

Workaround ?

Oops, sorry I don't have a real workaround for this one.

You could try using the linework tool with invisible lines, but that has annoying limitations:

• In section, the linework tool does not have grip handles at the end of selected cut lines - it makes the whole line invisible [Lines that are in surface/projection in the view would hav grip handles so that you could make part of the line invisible]

Then you would have to add detail lines back to the missing parts of the cut edges.

Top of the Stair?

What happens at the top of a stair when you try to join it to a floor/landing?  That is a whole different story, for another blog post . . . .

Tightly Curved Swept Blends in Revit Adaptive/Massing Environment

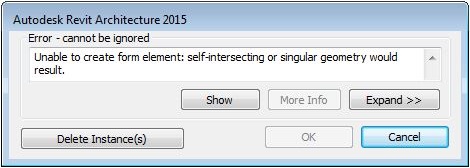

Following on from my last post about 'Unable to Create Form Element' in the Revit Adaptive / Conceptual Massing Environment, here are a few ideas about how you might just solve the problem.

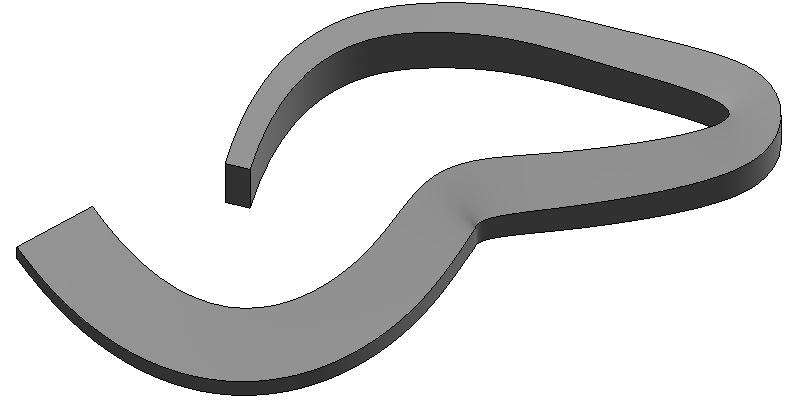

In the conventional family editor, Revit does not have any major problems in creating swept blends along a single path (one spline or arc or line), unless the radius of a curve on the sweep is too small and causes impossible geometry.  For example this simple sweep of a profile along a spline takes a minute or two to create:

In the Adaptive/Conceptual Massing Environment (CME) you have the added ability to loft shapes - to create blends of more than two shapes/profiles.  However, the rules for getting them to work are immensely more complicated, and often quite baffling.  Below is a particular workflow that I was using just to test a process, and it caused all kinds of issues.  Hopefully it might give you some clues as to how to solve similar problems - particularly if the path is more complex.

Creating Swept blends / Lofted Forms along a tightly curved path in CME

Workflow:

• Place three points
• Select the points
• Create a spline through the points



• Adjust the spline to have a fairly sharp transition by dragging the middle point

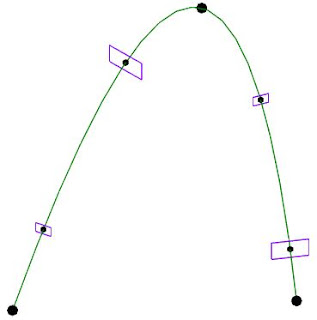

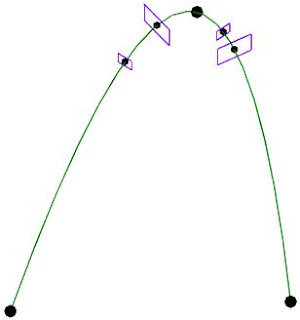

• Host some new points on spline

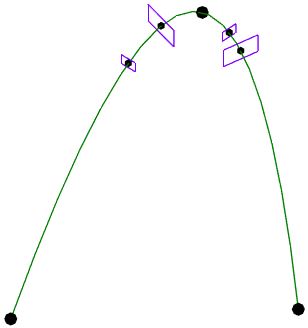

• Host some adaptive profile components on the points
• Select just the profiles

Select Profiles

•  Create Form - it fails

• Try pushing points closer together

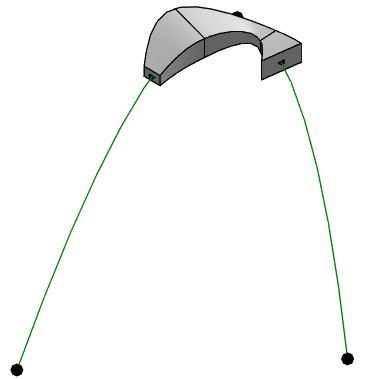

•  Select profiles; then create form - it might work if you are lucky

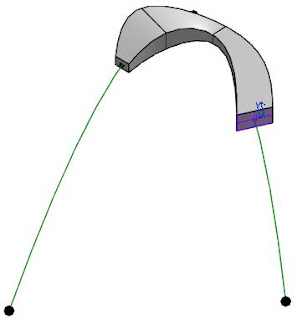

•  Maybe you can pull the points back along the curve

• At some point you get the 'No Entry' sign (circle with line through it), meaning it will not allow you to push the point that far along the spline

• Try picking the control point for the spline and make it less of a tight curve

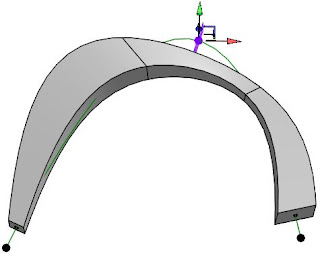

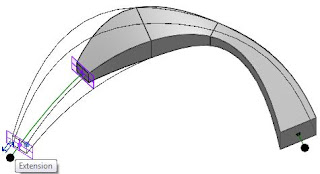

•  Then maybe you can extend form by pushing the points out

• If it is still not creating the form, you may need the spline to be really gentle to start with before you extend the points out to the ends of the spline

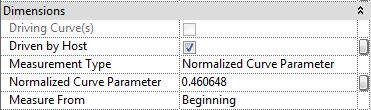

• Point locations along the spline can be controlled by properties, or you can even make it parametric - using the 'Normalised Curve Parameter'.

• Intermediate points may also need to move to get a better spread along spline

•  Then try pulling the spline back to a tighter shape - Revit will most likely allow you to create a much tighter shape than it would originally

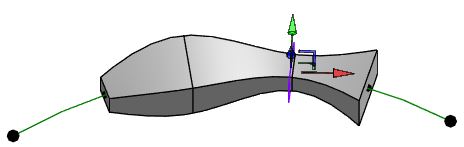

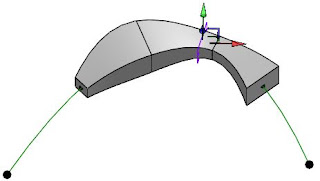

• At some stage you'll notice that the form does not follow the spline, it just creates its own shape by linking the profiles

This may or may not be what you want.

• If you do want it to follow the spline exactly, your life will be easier:
• Dissolve the form
• Select the profiles and the spline

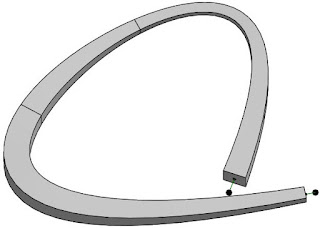

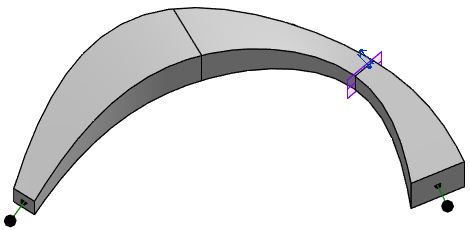

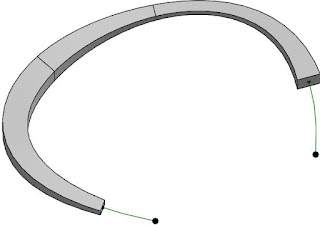

• Create Form again, and Revit will be much more forgiving - it is more likely to create the form with a tighter curve or one that turns more than 180 degrees on itself.  The obvious difference here is that it knows which order to link the profiles.

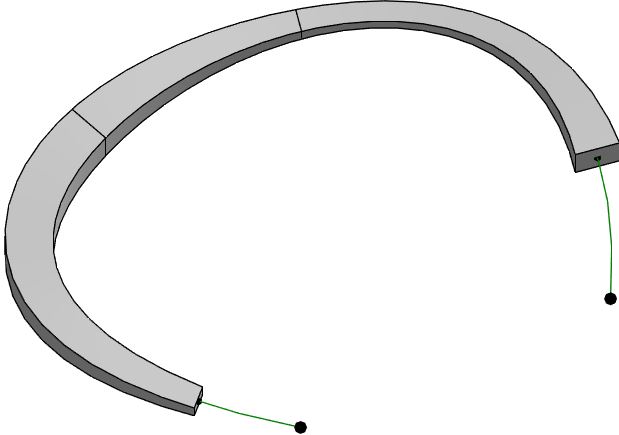

• It uses the spline as a path but only extends between the first and last profiles

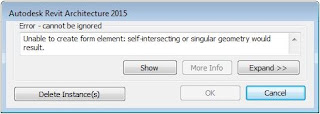

If you adjust the spline further, until the shape is too tight it will eventually tell you that it cannot create the form.  I have not figured out yet what the rules are.

What I have figured out is that if you go away for a while and drink a delicious cup of coffee brewed by your local barista (preferably a cappuccino), and come back to try again, you will usually have much more success with pulling the spline around into tighter curves with ends that even extend past each other (but not crossing).

Honestly, it is true that if you are too ambitious with the shapes initially Revit cannot cope.  But try adjusting them later and it works much better.  So the moral of the tale is that Revit gets a boost from caffeine just as much as you do.
More thoughts on lofting and swept blends to follow . . . .
Part 1 - Creating Sinuous Curve Swept Blends in Revit Adaptive/Massing Environment

Part 2 - Creating Revit Swept Blends along sinuous multi-segment paths
